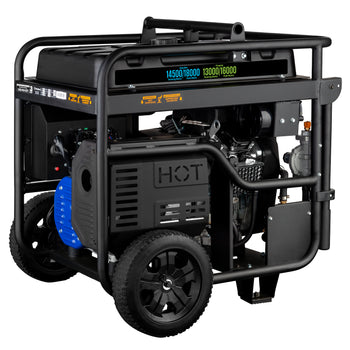

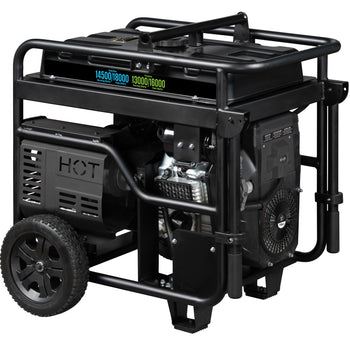

WGen14500DF Generator - Dual Fuel

  • Dual fuel engine; 18,000 peak and 14,500 running watts (gasoline)
  • Transfer switch and interlock kit ready; Ideal for home backup
  • Up to 16 hours of runtime at 25% load; Remote and electric start
2,749.00MSRP
Where to buy

For your toughest power needs, the Westinghouse WGen14500DF dual fuel portable generator produces up to 18,000 peak watts and 14,500 running watts and runs on gasoline and propane for flexibility. The heavy duty 713cc 4-Stroke OHV Westinghouse V-Twin engine has a cast iron sleeve and runs for up to 16 hours at 25% load on a 10.5 gallon gas tank, keeping you powered all day or night with a built in fuel gauge and automatic low oil shutdown. There is one 120/240V 14-50R 50A outlet and one 120/240V L14-30R 30A outlet. Both are transfer switch and interlock kit ready so they can power major appliances like air conditioners, refrigerators, sump pumps, as well as lights and entertainment centers at once with a single cord hookup. It also has a 120V L5-30R 30A outlet, two GFCI 120V 5–20R 20A standard duplex outlets and two USB ports. At less than 5% THD, you can safely power electronics like computers, phones and TVs. Copper windings help the unit produce cleaner power, run cooler and last longer. Push button electric start and remote start make powering up easy. A VFT data center shows voltage output, frequency and lifetime hours for real time information and maintenance alerts. Easily portable with never flat wheels, steel handles and lift bar, it’ll have your house, travel trailer or jobsite powered in seconds. Backed by a 3 year limited warranty, lifetime tech support and our Westinghouse Nationwide Service Network.

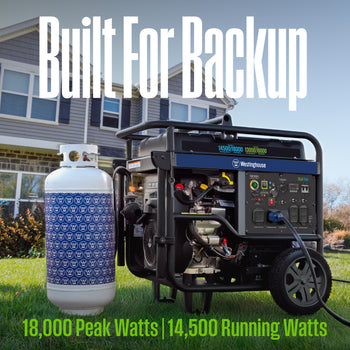

    • HUGE PORTABLE POWER: The WGen14500DF dual fuel generator is an ideal power source for jobsites and emergency backup of larger homes. Gas: 18,000 peak watts, 14,500 running watts; Propane: 16,000 peak watts, 13,000 running watts
    • DUAL FUEL WESTINGHOUSE WORKHORSE: Runs up to 16 hours at 25% load on a 10.5 gallon gas tank, powered by a heavy duty 713cc Westinghouse V-Twin OHV engine; Automatic low oil shutdown; Low idle mode; VFT data center shows voltage, frequency and lifetime hours for updates on output and maintenance
    • LOW THD—SAFE FOR SENSITIVE ELECTRONICS: At less than 5% THD, you can power phones, laptops, TVs and more to stay connected during outages, or on jobsites and campsites. Copper windings help the generator produce cleaner power, run cooler and last longer

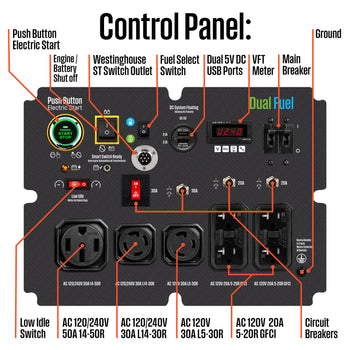

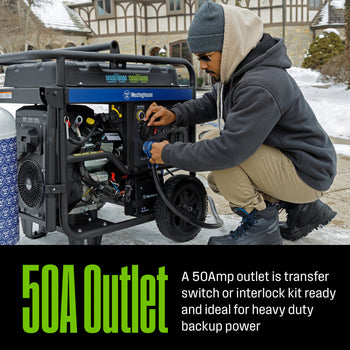

    • PLUG IN, POWER UP: One 120/240V 14-50R 50A outlet, one 120/240V L14-30R 30A outlet, both are transfer switch and interlock kit ready; One 120V L5-30R 30A outlet; Two GFCI 120V 5–20R 20A standard duplex outlets; Two USB ports; All have rubber covers
    • FULL OF FEATURES: Push button and remote start for quick and easy use; As low as 74 dBA operating volume; Reinforced steel handles; Oil, funnel and setup guide so you're ready to go

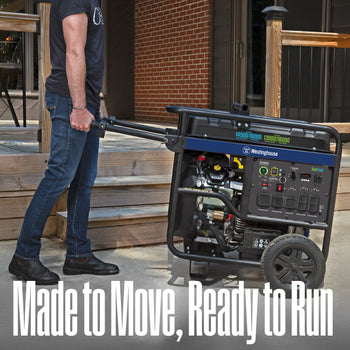

    • BIG AND BUILT TO MOVE: Never flat wheels, steel handles and lift bar for easy maneuvering means best-in-category power wherever you need it for home or jobsite. Power comparable to a stationary unit but with portability is the best of both worlds

Specifications

Model Name WGen14500DF
Gasoline Peak Watts 18000
Gasoline Running Watts 14500
Propane Peak Watts 16000
Propane Running Watts 13000
Fuel Type Dual Fuel: Gas and LPG
Gasoline Peak Amps 75A - 240V, 150A - 120V
Gasoline Running Amps 60.4A - 240V, 120.8A - 120V
Propane Peak Amps 66.7A - 240V, 133.3A - 120V
Propane Running Amps 54.2A - 240V, 108.3A - 120V
Gasoline Run Time @ 25% Up to 16hrs
Gasoline Run Time @ 50% Up to 9hrs
Propane Run Time @ 25% (20 lb. Tank) Up to 6hrs
Propane Run Time @ 50% (20 lb. Tank) Up to 4hrs
Total Harmonic Distortion (THD) ≤5%
Outlets (2) AC 120V 5-20R GFCI
(1) AC 120V 30A L5-30
(1) AC 120/240V 30A L14-30R
(1) AC 120/240V 50A 14-50R
(2) DC 5V USB ports
Transfer Switch Ready (50A) Yes
RV Ready Yes
ST Switch Ready Yes
GFCI Outlets Yes
AC Voltage 120/240V
AC Frequency 60 Hz
Parallel Capable No
Engine Westinghouse 713cc OHV V-Twin
Cast Iron Sleeve Yes
Engine Speed 3600 RPM (Low Idle ~2900)
Starter Type Electric, Remote
Recoil Start No
Choke Type Automatic
Smart Idle Yes
Fuel Tank Capacity 10.5 gal (40 L)

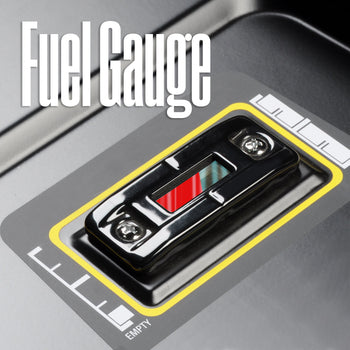

Fuel Gauge Yes
Oil Capacity 51.2 oz. (1.6 qt)
Oil Type 10W-30
Automatic Low Oil Shutdown Yes
Overload Protection Yes
Winding Material Copper Windings
Grounding System Bonded Neutral
Outlet Covers Yes
VFT Meter Yes
Noise Level As low as 74 dBA

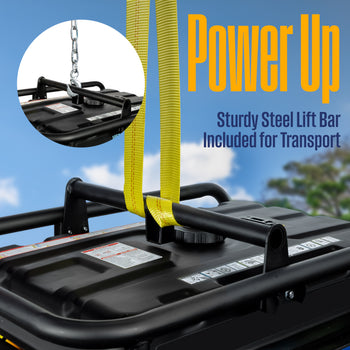

Lift Bracket Yes
Wheel & Handle Kit Included Yes
Wheel Size 12 in.
Battery Included Yes
EPA Compliant Yes
CARB Compliant No
Carbon Monoxide (CO) Sensor No
Warranty (Residential) 3 Year Limited
Warranty (Commercial) 1 Year Limited

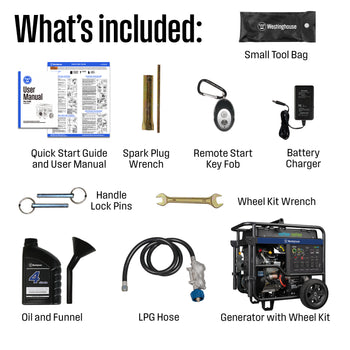

Included Accessories (1) Oil Bottle with Funnel
(1) Spark Plug Wrench
(1) Wheel Kit Wrench
(2) Handle Locking Pins
(1) Remote Start Key Fob
(1) 12V Battery
(1) Battery Charger
(1) LPG Hose
Product Dimensions 34L x 31W x 35H in.
Dry Unit Weight 352 lb. (160 kg)
Packaging Dimensions 35.4L x 24.4W x 33.5H in.
Shipping Weight 416.7 lb. (189 kg)
Part Number 12003
UPC 853544008304
