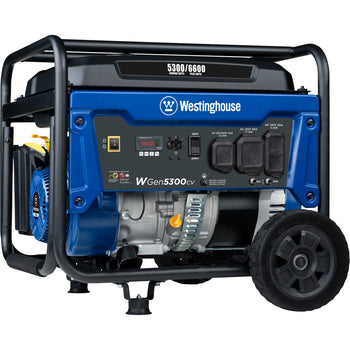

WGen5300cv Generator with CO Sensor
  • RV And Transfer Switch Ready With 120/240V Voltage Selector
  • Easily Powers Sump Pumps, AC, Refrigerators, Well Pumps and More
  • 6600 Peak Watts, 5300 Rated Watts; Up To 14.5 Hour Run Time at 25% Load
Where to buy

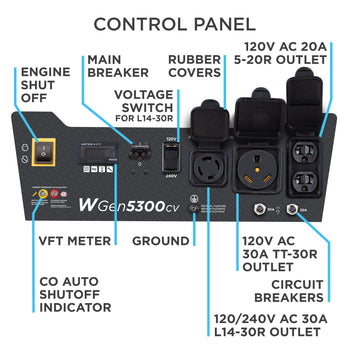

The Westinghouse WGen5300cv Portable Generator with CO Sensor is a convenient generator to keep you powered on the road or at your home during a power outage. With 5,300 peak watts and 6,600 running watts, this generator runs for up to 14.5 hours at a time with a 4.7 gallon (18 L) gasoline fuel tank. The WGen5300cv features a powerful 274cc 4-Stroke OHV Westinghouse Engine with a cast iron sleeve designed for durability, featuring a built-in fuel gauge and automatic low oil shutdown. It’s equipped with an RV Ready TT-30R 30A outlet that conveniently hooks to your travel trailer, keeping the air conditioner and travel necessities up and running all day long. Combined with an L14-30R outlet, it’s Transfer Switch Ready for total household power and eliminates the hassle for annoying extension cords or power strips for your home. The WGen5300cv is easy to use with an intuitive control panel that houses a 120/240 Volt Selector Switch to draw more power with added flexibility and a Digital Readout which displays real-time information to keep up with regularly scheduled maintenance. Engineered into a compact hardened-steel frame with added roll bars, foam grip handle, and never-flat wheels, it lets you easily move this generator from storage to use. The WGen5300cv Portable Generator is complete with a 3-Year Limited Warranty and Lifetime Technical Support, backed by our nationwide Westinghouse customer service and support network.



  • Perfect as a backup power source at home or portable power solution for RVs
  • 5,300 running watts and 6,600 peak watts with recoil start
  • Runs for up to 14.5 hours on a 4.7 gal. fuel tank with built-in fuel gauge
  • Powered by a tough 274cc 4-Stroke OHV Westinghouse Engine constructed with a durable cast iron sleeve
  • (1) 5-20R household duplex outlets, (1) Transfer Switch Ready L14-30R 120/240V twist-lock, and (1) RV Ready 120V TT-30R receptacle with rubber outlet covers
  • 120/240 Volt Selector Switch allows for more flexible power draw per outlet
  • Digital Readout gives you real time updates with the voltage output, frequency, and lifetime hours
  • Safe and convenient with automatic low oil shutdown, automatic voltage regulation, and overload protection

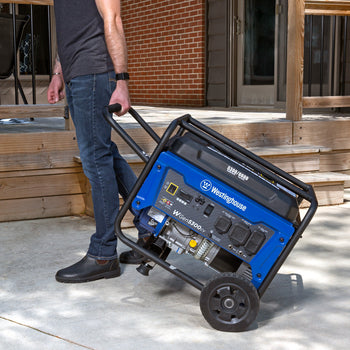

  • Compact hardened steel frame with foam grip handle and rugged never-flat wheels make portability easy
  • Featuring a carbon monoxide (CO) sensor with automatic shutdown
  • All Westinghouse portable generators are functionally tested in the factory and may contain minimum residual oil and/or fuel odor

Specifications

Oil capacity 20.3 oz. (0.6 qt.)
Engine oil type 10W30
Carbon monoxide (co) sensor Yes
Overload protection Yes
Automatic low oil shutdown Yes
Grounding system Floating Neutral
Battery included No
Warranty (residential) 3 Year Limited
Carb compliant Yes
Product dimensions 23.23L x 20.08W x 19.09H in.
Shipping weight 141.1 lb. (63.5 kg)
Warranty (commercial) 1 Year Limited
Packaging dimensions 26.7L x 21.6W x 20.3H in.
Engine type OHV 4 Stroke
Choke type Manual
Engine displacement 274cc
Gasoline run time @ 25% 14.5 hrs.
Starter type Recoil
Fuel gauge Yes
Noise level 68 dBA
Rv ready Yes

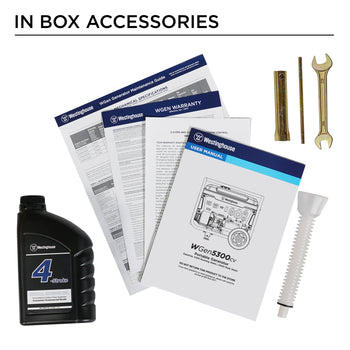

Included accessories Oil Bottle, Oil Funnel, Spark Plug Wrench
Transfer switch ready Yes
Gfci outlets No
Outlet covers Yes
Ac frequency 60 Hz
Outlets 1 120V Duplex 5-20R
1 120/240V L14-30R
1 120V TT-30R
Ac voltage 120/240V
Gasoline peak amps 27.5A - 240V
55A - 120V
Fuel tank capacity 4.7 gal. (18 L)
Gasoline running amps 22A - 240V
44A - 120V
Gasoline running watts 5300
Gasoline peak watts 6600
Dry unit weight 133.6 lb. (60.1 kg)
Upc 850011336700
Total harmonic distortion ≤23%
Display type Digital Readout
Gasoline run time @ 50% 11 hrs.
