WGen7500DFc - Dual Fuel with CO Sensor
  • Up To 11 Hour Run Time at 50% Load with Remote and Electric Start
  • Dual Fuel, Transfer and ST Switch Ready, Ideal for Home Backup
  • 9500/8550 Peak Watts and 7500/6750 Rated Watts (Gas/Propane)

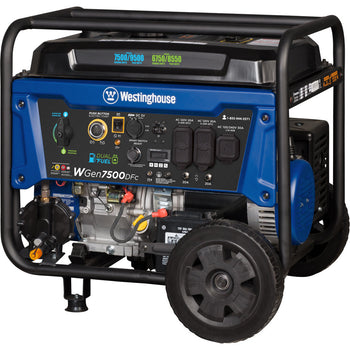

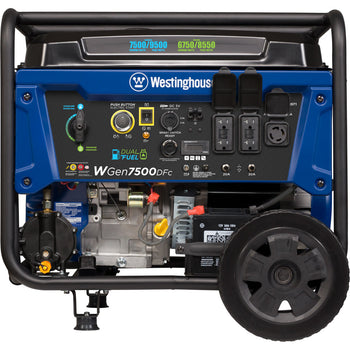

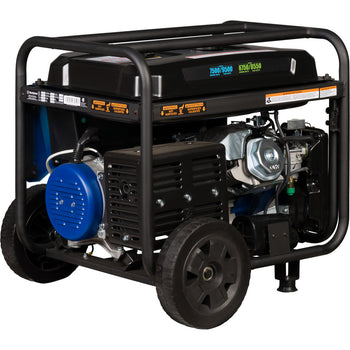

The Westinghouse WGen7500DFc Dual Fuel Portable Generator with CO Sensor is a powerful solution to staying prepared for emergency events. It produces up to 9,500 peak watts and 7,500 running watts, running for up to 11 hours on a 6.6 Gal. (25 L) gasoline fuel tank. Forged with a cast iron sleeve, the WGen7500DFc has a 420cc 4-Stroke OHV Westinghouse Engine constructed for durability. It's equipped with a built-in fuel gauge, automatic low oil shutdown, and GFCI household outlets for added protection. The WGen7500DFc features Push-Button Electric Start which conveniently pairs with a wireless remote key fob for effortless ignition, and as a dual fuel generator, the WGen7500DFc operates on gasoline or propane (LPG) for versatility. The L14-30R outlet is Transfer Switch Ready, connecting straight to your home for total household power and eliminating the hassle for annoying extension cords or power strips. The WGen7500DFc is easy to care for with a VFT Data Center to share real-time updates on maintenance information, ensuring long life and lasting utility. A hardened-steel frame with added roll bars, foam grip handle, and never-flat wheels lets you easily transport this generator on the go. The WGen7500DFc is complete with a 3-Year Limited Warranty and Lifetime Technical Support backed by our nationwide customer service and support network.

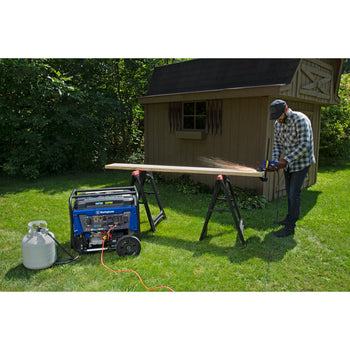

  • Perfect as a backup power source at home or a dependable source of portable power
  • 7,500 running watts and 9,500 peak watts (gasoline); 8,550 peak watts and 6,750 running watts (propane)

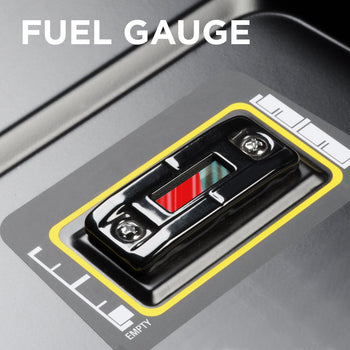

  • Runs for up to 11 hours on a 6.6 gal. fuel tank with built-in fuel gauge; up to 8 hours on a 20 lb. propane tank

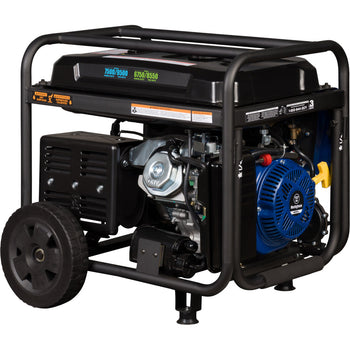

  • Powered by a high performance 420cc 4-Stroke OHV Westinghouse Engine constructed with a durable cast iron sleeve

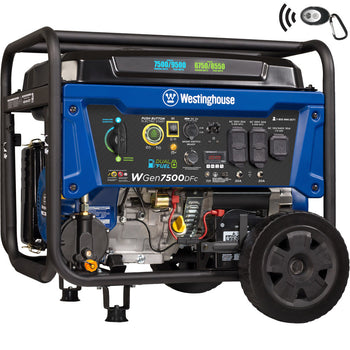

  • Push-Button Electric Start pairs with remote start key fob and is backed by emergency recoil start

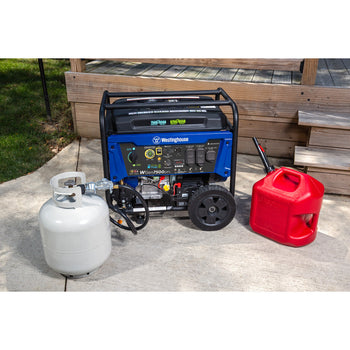

  • Dual fuel operation easily switches from gas to propane without shutting off unit
  • Weighing 202.1 lb. with as low as 72 dBA operating volume

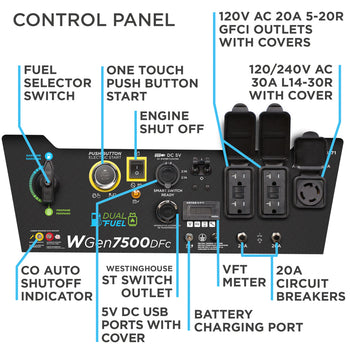

  • (2) GFCI 5-20R household duplex outlets, (1) Transfer Switch Ready L14-30R 120/240-Volt twist-lock receptacle,  and (2) USB ports with rubber outlet covers
  • VFT display gives you real time updates with the voltage output, frequency, and lifetime hours
  • Featuring a carbon monoxide (CO) sensor with automatic shutdown
  • All Westinghouse portable generators are functionally tested in the factory and may contain minimum residual oil and/or fuel odor

Specifications

Oil capacity 37.2 oz. (1.1 qt.)
Engine oil type 10W30
Carbon monoxide (co) sensor Yes
Overload protection Yes
Automatic low oil shutdown Yes
Grounding system Bonded Neutral

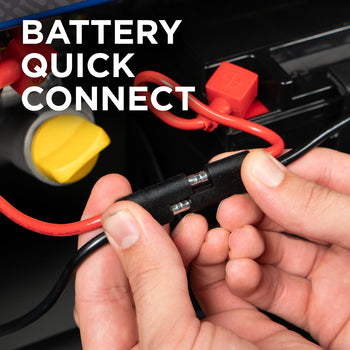

Battery included Yes
Warranty (residential) 3 Year Limited
Carb compliant Yes
Product dimensions 27.2L x 26.1W x 26H in.
Shipping weight 215.6 lb. (97.3 kg)
Warranty (commercial) 1 Year Limited
Packaging dimensions 31L x 21.5W x 23H in.
Engine type OHV 4 Stroke
Choke type Automatic
Engine displacement 420cc
Starter type Electric, Remote, Recoil
Fuel gauge Yes
Noise level 72 dBA
Rv ready No

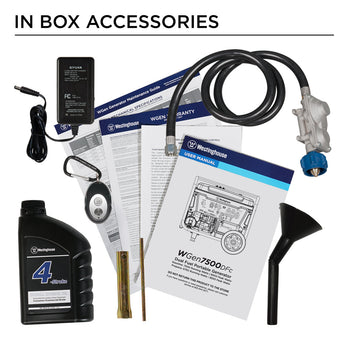

Included accessories Oil Bottle, Oil Funnel, Spark Plug Wrench, Remote, Propane Regulator/Hose, Battery, Battery Float Charger
Transfer switch ready Yes
Gfci outlets Yes
Outlet covers Yes
Ac frequency 60 Hz
Outlets 2 Duplex 120V 5-20R
1 120/240V L14-30R
2 USB Ports
ST Switch
Ac voltage 120/240V
Gasoline peak amps 39A - 240V
79A - 120V
Fuel tank capacity 6.6 gal. (25 L)
Gasoline running amps 31A - 240V
62A - 120V
Gasoline running watts 7500
Gasoline peak watts 9500
Dry unit weight 202.1 lb. (91.2 kg)
Upc 850011336694
Total harmonic distortion ≤23%
Display type Digital Readout
Propane peak amps 35.6A - 240V
71A - 120V
Propane running amps 28A - 240V
56A - 120V
Propane running watts 6750
Propane peak watts 8550
Gasoline run time @ 50% 11 hrs.
St switch ready Yes
Propane run time @ 50% 8 hrs.
