WGen9500DFc - Dual Fuel with CO Sensor
  • Up To 12 Hour Run Time @ 25% Load with Remote and Electric Start
  • Dual Fuel, Transfer and ST Switch Ready, Ideal for Home Backup
  • 12500/11200 Peak Watts and 9500/8500 Rated Watts (Gas/Propane)

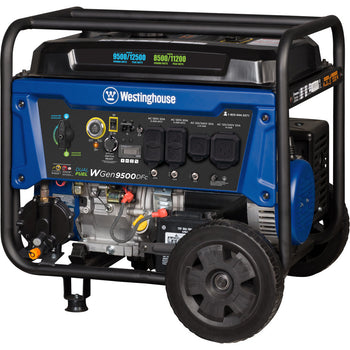

The Westinghouse WGen9500DFc Dual Fuel Portable Generator with CO Sensor produces up to 12,500 peak watts and 9,500 running watts, the WGen9500DFc is a dual fuel generator that operates on gasoline or propane (LPG). The heavy duty 457cc 4-Stroke OHV Westinghouse Engine is constructed of a durable cast iron sleeve and runs for up to 12 hours on a 6.6 gallon (25 L) gas tank, keeping you powered through the day with built-in fuel gauge, automatic low oil shutdown, and GFCI outlets. Push-Button Electric Start makes starting the WGen9500DFc effortless while the remote start key fob offers added ease from a distance. Its intuitive control panel spotlights the Transfer Switch Ready L14-30R and larger 14-50R to power your major appliances like the air conditioner, refrigerator, and sump pump as well as any lights or entertainment centers all at the same time with a single cord hookup. VFT Data Center displays volt output, frequency, and lifetime hours to keep you up to date with real-time information and regular maintenance. Conveniently portable with an included set of heavy duty never-flat wheels, handle, and lift bracket, it'll have your house, travel trailer, or jobsite powered in seconds. The WGen9500DFc is complete with a 3-Year Limited Warranty and Lifetime Technical Support backed by our nationwide customer service and support network.

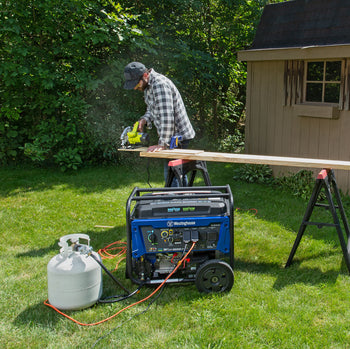

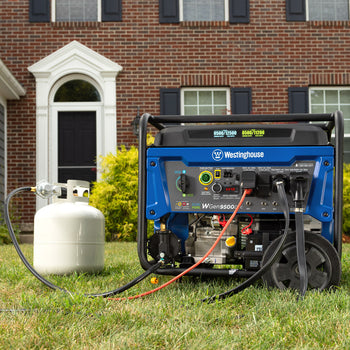

  • Perfect as a backup power source for larger homes or a dependable source of portable power
  • 9,500 running watts, 12,500 peak watts (gasoline); 8500 running watts, 11,200 peak watts (propane)

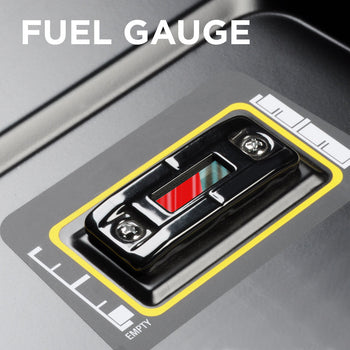

  • Runs for up to 12 hours on a 6.6 gal. fuel tank with built-in fuel gauge; up to 7 hours on a 20 lb. propane tank

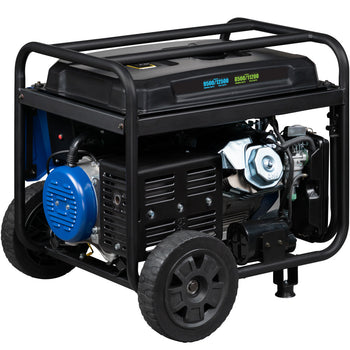

  • Powered by a heavy duty 457cc 4-Stroke OHV Westinghouse Engine constructed with a durable cast iron sleeve

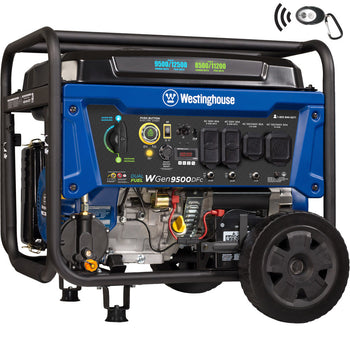

  • Push-Button Electric Start pairs with key fob and is backed by emergency recoil start
  • Dual fuel operation easily switches from gas to propane without shutting off unit
  • Weighing 212.1 lb. with as low as 74 dBA operating volume

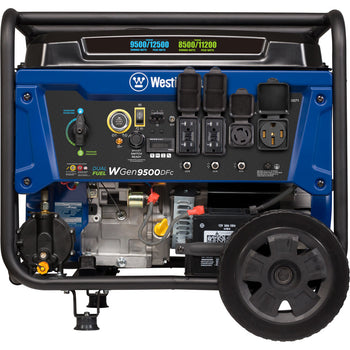

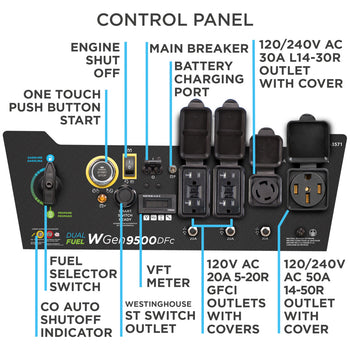

  • (2) GFCI 5-20R household duplex outlets, (1) Transfer Switch Ready L14-30R 120/240-Volt twist-lock, and (1) 120/240V 14-50R with rubber outlet covers
  • VFT display gives you real time updates with the voltage output, frequency, and lifetime hours
  • Featuring a carbon monoxide (CO) sensor with automatic shutdown
  • All Westinghouse portable generators are functionally tested in the factory and may contain minimum residual oil and/or fuel odor

Specifications

Oil capacity 37.2 oz. (1.1 qt.)
Engine oil type 10W30
Carbon monoxide (co) sensor Yes
Overload protection Yes
Automatic low oil shutdown Yes
Grounding system Bonded Neutral

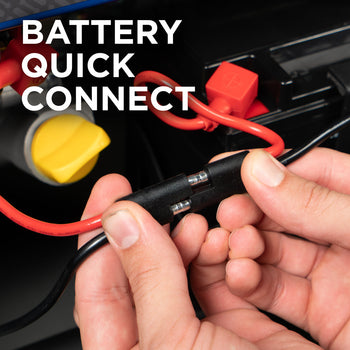

Battery included Yes
Warranty (residential) 3 Year Limited
Carb compliant Yes
Product dimensions 27.2L x 26.1W x 26.5H in.
Shipping weight 227.1 lb. (102.5 kg)
Warranty (commercial) 1 Year Limited
Packaging dimensions 31L x 21.5W x 23H in.
Engine type OHV 4 Stroke
Choke type Automatic
Engine displacement 457cc
Gasoline run time @ 25% 12 hrs.
Starter type Electric, Remote, Recoil
Fuel gauge Yes
Noise level 74 dBA
Rv ready Yes

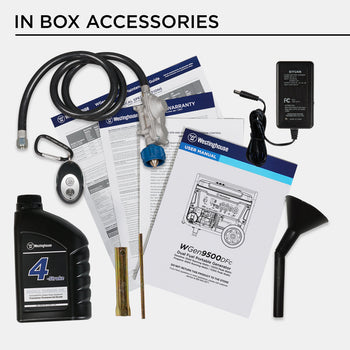

Included accessories Oil Bottle, Oil Funnel, Spark Plug Wrench, Remote, Propane Regulator/Hose, Battery Float Charger
Transfer switch ready Yes
Gfci outlets Yes
Outlet covers Yes
Ac frequency 60 Hz
Outlets 2 Duplex 120V 5-20R
1 120/240V L14-30R
1 120/240V 14-50R
ST Switch
Ac voltage 120/240V
Gasoline peak amps 52A - 240V
104A - 120V
Fuel tank capacity 6.6 gal. (25 L)
Gasoline running amps 39.5A - 240V
79A - 120V
Gasoline running watts 9500
Gasoline peak watts 12500
Dry unit weight 212.1 lb. (95.7 kg)
Upc 850011336663
Total harmonic distortion ≤23%
Display type Digital Readout
Propane peak amps 47A - 240V
93A - 120V
Propane running amps 35A - 240V
71A - 120V
Propane running watts 8500
Propane peak watts 11200
Gasoline run time @ 50% 8 hrs.
St switch ready Yes
Propane run time @ 50% 7 hrs.
