WGen9500TF - Tri-Fuel
  • Up To 12 Hour Run Time @ 25% Load with Remote and Electric Start
  • Tri-Fuel, Transfer and ST Switch Ready, Ideal for Home Backup
  • 12500/11200/9500 Peak | 9500/8500/7500 Rated Watts (Gas/LPG/NG)
Where to buy

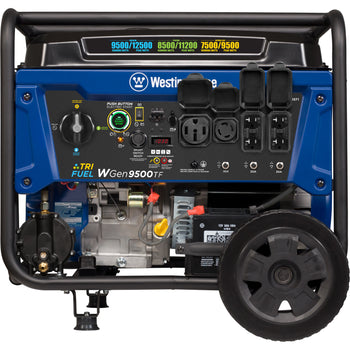

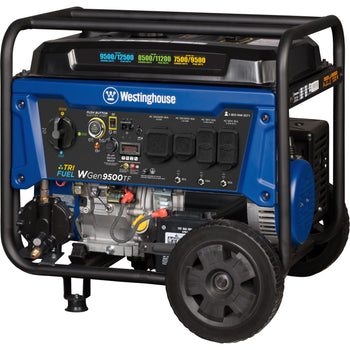

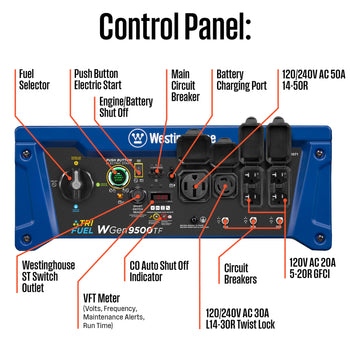

The Westinghouse WGen9500TF Tri-Fuel Portable Generator with CO Sensor produces up to 12,500 peak watts and 9,500 running watts, the WGen9500TF is a tri fuel generator that operates on gasoline, propane (LPG), or natural gas. The heavy duty 457cc 4-Stroke OHV Westinghouse Engine is constructed of a durable cast iron sleeve and runs for up to 12 hours on a 6.6 gallon (25 L) gas tank, keeping you powered through the day with built-in fuel gauge, automatic low oil shutdown, and GFCI outlets. Push-Button Electric Start makes starting the WGen9500TF effortless while the remote start key fob offers added ease from a distance. Its intuitive control panel spotlights the Transfer Switch Ready L14-30R and larger 14-50R to power your major appliances like the air conditioner, refrigerator, and sump pump as well as any lights or entertainment centers all at the same time with a single cord hookup. VFT Data Center displays volt output, frequency, and lifetime hours to keep you up to date with real-time information and regular maintenance. Conveniently portable with an included set of heavy duty never-flat wheels, handle, and lift bracket, it'll have your house, travel trailer, or jobsite powered in seconds. The WGen9500TF is complete with a 3-Year Limited Warranty and Lifetime Technical Support backed by our nationwide customer service and support network.



    • FUEL FLEXIBILITY FOR HOME, RV & JOBSITE: 12500 Peak Watts, 9500 Running Watts (gasoline); 11200 Peak Watts, 8500 Running Watts (propane); 9500 Peak Watts, 7500 Running Watts (natural gas); remote start key fob, electric and recoil start; 12 hour max runtime on a 6.6 gallon fuel tank with fuel gauge

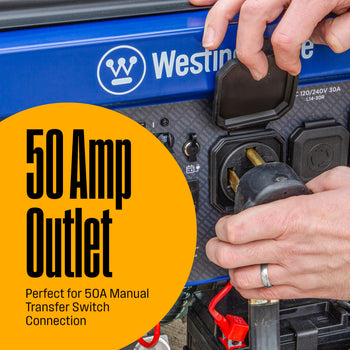

    • MULTIPLE OUTLETS FOR MANY USES: Features two GFCI 120V 5–20R standard household receptacle, one transfer switch ready 120V L14-30R, and one RV ready 120/240V 14–50R; all outlets have rubber covers for added safety
    • DURABLE ENGINE WITH SAFETY BUILT-IN: Powered by a heavy duty 457cc Westinghouse 4-Stroke OHV engine featuring a long-lasting cast iron sleeve, automatic low oil and carbon monoxide (CO) shutdown, and digital hour meter for easy maintenance tracking

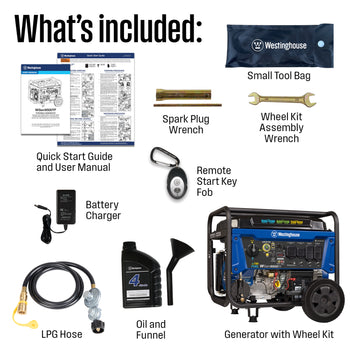

    • PLUG & PLAY: Comes with a remote start key fob, 12V battery charger, oil, and oil funnel, a tool kit, and a user’s manual to get you started right out of the box (minimal assembly required)
    • POWER YOU CAN TRUST: All Westinghouse generators are functionally tested at the factory and may contain minimal residual oil or fuel odor and are backed by 3-year limited warranty and our nationwide Westinghouse customer service network
    • SAFETY FIRST:  With a cutting-edge carbon monoxide sensor, the system continuously monitors air quality and automatically shuts down if dangerous CO levels are detected. Protect your family and pets with real-time alerts and peace of mind during operation

Specifications

Gasoline peak watts 12500
Gasoline running watts 9500
Propane peak watts 11200
Propane running watts 8500
Natural gas peak watts 9500
Natural gas running watts 7500
Gasoline peak amps 52A
Gasoline running amps 39.6A
Propane peak amps 46.7A
Propane running amps 35.4A
Natural gas peak amps 39.6A
Natural gas running amps 31.2A
Ac voltage 120/240V
Ac frequency 60 Hz
Outlets 2 Duplex 120V 5-20R, 1 120/240V L14-30R, 1 120/240V 14-50R
St switch
Total harmonic distortion ≤23%
Gfci outlets Yes
Outlet covers Yes
Transfer switch ready Yes
Rv ready Yes
St switch ready Yes
Display type Digital Readout
Noise level 74 dBA
Fuel gauge Yes
Fuel tank capacity 6.6 gal. (25 L)
Gasoline run time @ 25% 12 hrs.
Gasoline run time @ 50% 8 hrs.
Propane run time @ 50% 7 hrs.
Starter type Electric, Remote, Recoil
Choke type Automatic
Engine displacement 457cc
Engine type OHV 4 Stroke
Oil capacity 37.2 oz. (1.1 qt.)
Engine oil type 10W30
Automatic low oil shutdown Yes
Carbon monoxide (co) sensor Yes
Overload protection Yes
Carb compliant No
Grounding system Bonded Neutral
Battery included Yes
Included accessories Oil Bottle, Oil Funnel, Spark Plug Wrench, Remote, Propane Regulator/Hose, and Battery Float Charger
Warranty (residential) 3 Year Limited
Warranty (commercial) 1 Year Limited
Product dimensions 27.2L x 26.1W x 26.3H in.
Dry unit weight 215 lb. (97.5 kg)
Packaging dimensions 31L x 21.5W x 23H in.
Shipping weight 242 lb. (109.8 kg)
Part number 9527c
Upc 850060639883
