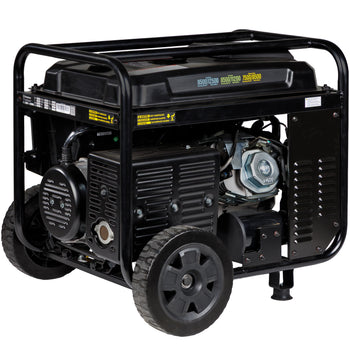

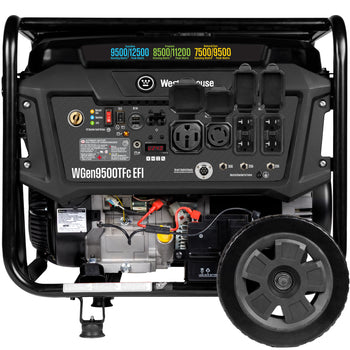

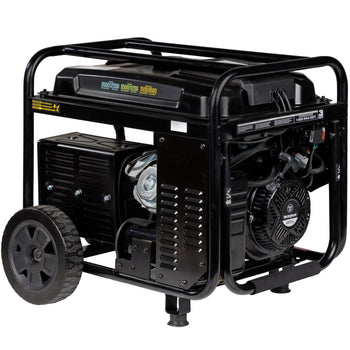

WGen9500TFc EFI - Tri-Fuel with CO Sensor
  • Portable tri-fuel generator, 12,500 peak/9,500 running watts
  • Transfer and ST switch ready with 3-Year Limited Warranty
  • Electronic Fuel Injection for the ultimate in generator tech
Where to buy

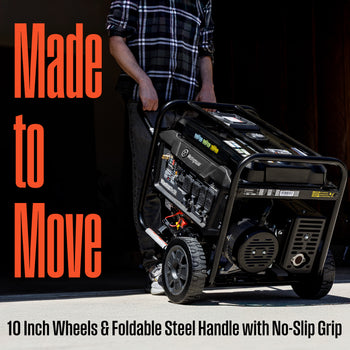

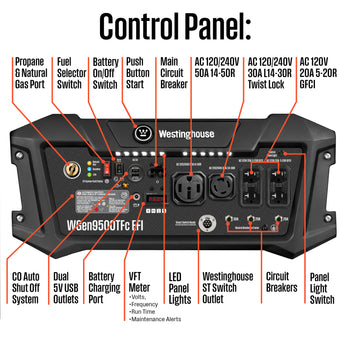

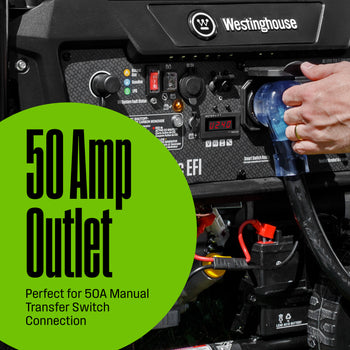

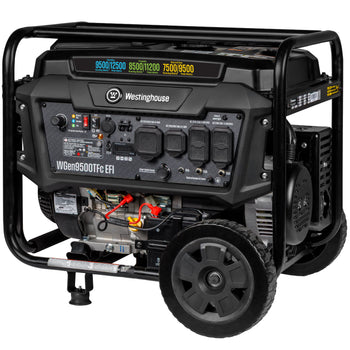

The Westinghouse WGen9500TFc EFI Tri-Fuel Portable Generator with CO Sensor produces up to 12,500 peak watts and 9,500 running watts. As a flexible tri-fuel generator, it runs on gasoline, propane (LPG), or natural gas. The heavy duty 457cc 4-stroke OHV Westinghouse EFI Engine is made of a durable cast iron sleeve and runs for up to 15 hours on a 6.6 gallon (25 L) gas tank, keeping you powered through the day or night with built-in fuel gauge, automatic low oil shutdown and GFCI outlets. Electronic fuel injection and push-button electric start makes starting effortless. A remote start key fob offers ease at a distance. A lighted control panel spotlights the transfer switch ready 120/240V 14–50R 50A outlet for home and RV and a L14-30R 30A outlet. Either outlet is perfect for whole home backup and can power major appliances like the air conditioner, refrigerator, and sump pump along with lights or entertainment centers all at the same time with a single cord hookup. It also has two GFCI 120V 5–20R 20A duplex household outlets. VFT Data Center displays volt output, frequency, and lifetime hours to keep you up to date with real-time information and maintenance. Conveniently portable with heavy duty never-flat wheels and foldable handle, it'll have your house, travel trailer or jobsite powered in seconds. The WGen9500TFc EFI is complete with a 3-Year Limited Warranty and lifetime technical support backed by our nationwide Westinghouse Customer Service and Support Network.



    • FUEL FLEXIBILITY FOR HOME, RV & WORK: 12,500 peak watts, 9,500 running watts (gasoline); 11,200 peak watts, 8,500 running watts (propane); 9,500 peak watts, 7,500 running watts (natural gas); remote start with key fob; electric and recoil start; up to 15 hours runtime on 6.6-gallon fuel tank with gauge

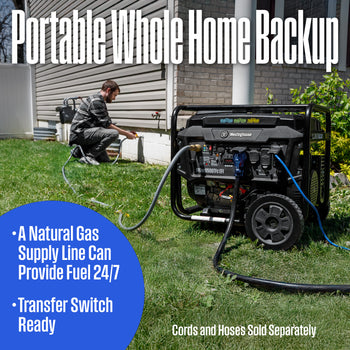

    • MULTIPLE OUTLETS FOR MANY USES: Features one 120/240V 14–50R 50A outlet for home or RV and one 120V L14-30R 30A twist lock. Both outlets are transfer switch ready for home backup. Includes two GFCI 120V 5–20R 20A duplex household outlets. All include rubber covers for added protection
    • DURABLE ENGINE WITH SAFETY BUILT-IN: Equipped with 457cc Westinghouse 4-stroke OHV engine with durable cast iron sleeve; automatic low oil shutdown; CO sensor for added safety; digital hour meter for easy maintenance tracking

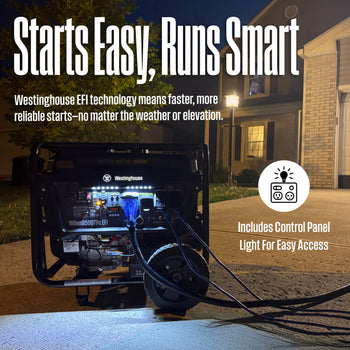

    • ADVANCED EFI: Makes starting your generator as easy as starting a car, with no choke or carburetor to hassle with. Electronic fuel injection delivers higher power and torque, reduces fuel use and emissions, increases engine reliability, and needs less maintenance. Carb compliant in all 50 States
    • POWER YOU CAN TRUST: All Westinghouse generators are functionally tested at the factory and may contain minimal residual oil or fuel odor and are backed by 3-year limited warranty and our nationwide Westinghouse Customer Service Network

Specifications

Gasoline peak watts 12500
Gasoline running watts 9500
Propane peak watts 11200
Propane running watts 8500
Natural gas peak watts 9500
Natural gas running watts 7500
Gasoline peak amps 52A
Gasoline running amps 39.6A
Propane peak amps 46.7A
Propane running amps 35.4A
Natural gas peak amps 39.6A
Natural gas running amps 31.2A
Ac voltage 120/240V
Ac frequency 60 Hz
Outlets 2 Duplex 120V 5-20R, 1 120/240V L14-30R, 1 120/240V 14-50R, ST Switch
Total harmonic distortion ≤23%
Gfci outlets Yes
Outlet covers Yes
Transfer switch ready Yes
Rv ready Yes
St switch ready Yes
Display type Digital Readout
Noise level 74 dBA
Fuel gauge Yes
Fuel tank capacity 6.6 gal. (25 L)
Gasoline run time @ 25% 15 hrs.
Gasoline run time @ 50% 10 hrs.
Propane run time @ 50% 8.75 hrs.
Starter type Electric, Remote, Recoil
Choke type Automatic
Engine displacement 457cc
Engine type OHV 4 Stroke
Oil capacity 37.2 oz. (1.1 qt.)
Engine oil type 10W30
Automatic low oil shutdown Yes
Carbon monoxide (co) sensor Yes
Overload protection Yes
Carb compliant Yes
Grounding system Bonded Neutral
Battery included Yes

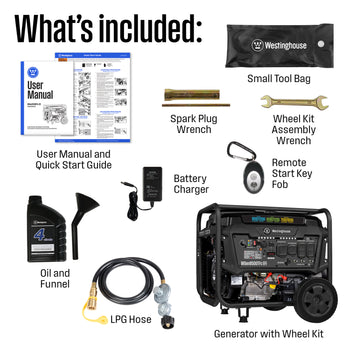

Included accessories Oil Bottle, Oil Funnel, Spark Plug Wrench, Remote, Propane Regulator/Hose, Battery Float Charger
Warranty (residential) 3 Year Limited
Warranty (commercial) 1 Year Limited
Product dimensions 27.3L x 20.6W x 22.6H in.
Dry unit weight 222 lb.
Packaging dimensions 31.5L x 22.4W x 23.8H in.
Shipping weight 251.3 lb. (109.8 kg)
Part number 9537
Upc 850060639043
