WGen9500TFc - Tri-Fuel with CO Sensor
  • Up To 12 Hour Run Time @ 25% Load with Remote and Electric Start

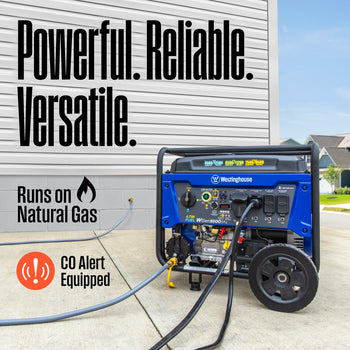

  • Tri-Fuel, Transfer and ST Switch Ready, Ideal for Home Backup

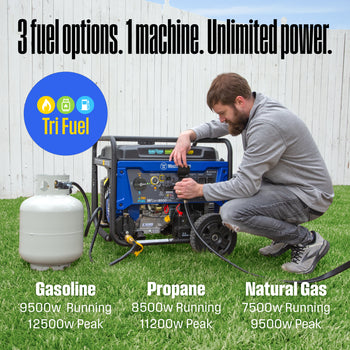

  • 12500/11200/9500 Peak | 9500/8500/7500 Rated Watts (Gas/LPG/NG)
Where to buy

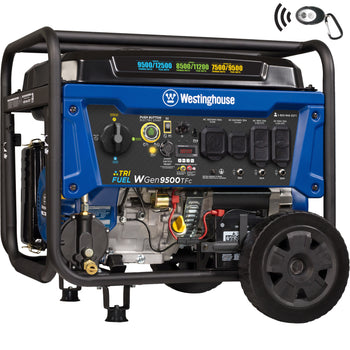

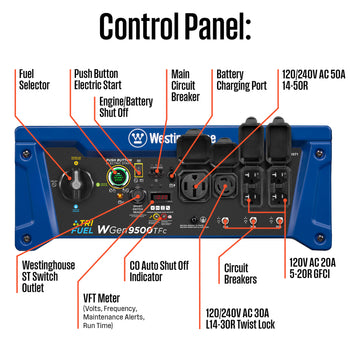

The Westinghouse WGen9500TFc Tri-Fuel Portable Generator with CO Sensor produces up to 12,500 peak watts and 9,500 running watts, the WGen9500TFc is a tri fuel generator that operates on gasoline, propane (LPG), or natural gas. The heavy duty 457cc 4-Stroke OHV Westinghouse Engine is constructed of a durable cast iron sleeve and runs for up to 12 hours on a 6.6 gallon (25 L) gas tank, keeping you powered through the day with built-in fuel gauge, automatic low oil shutdown, and GFCI outlets. Push-Button Electric Start makes starting the WGen9500TFc effortless while the remote start key fob offers added ease from a distance. Its intuitive control panel spotlights the Transfer Switch Ready L14-30R and larger 14-50R to power your major appliances like the air conditioner, refrigerator, and sump pump as well as any lights or entertainment centers all at the same time with a single cord hookup. VFT Data Center displays volt output, frequency, and lifetime hours to keep you up to date with real-time information and regular maintenance. Conveniently portable with an included set of heavy duty never-flat wheels, handle, and lift bracket, it'll have your house, travel trailer, or jobsite powered in seconds. The WGen9500TFc is complete with a 3-Year Limited Warranty and Lifetime Technical Support backed by our nationwide customer service and support network.



  • Perfect as a backup power source for larger homes or a dependable source of portable power
  • 9,500 running watts, 12,500 peak watts (gasoline); 8500 running watts, 11,200 peak watts (propane); 7500 running watts, 9500 peak watts (natural gas)

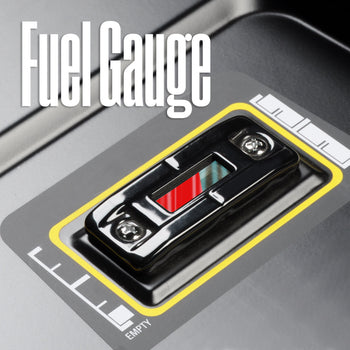

  • Runs for up to 12 hours on a 6.6 gal. fuel tank with built-in fuel gauge; up to 7 hours on a 20 lb. propane tank
  • Powered by a heavy duty 457cc 4-Stroke OHV Westinghouse Engine constructed with a durable cast iron sleeve
  • Push-Button Electric Start pairs with key fob and is backed by emergency recoil start

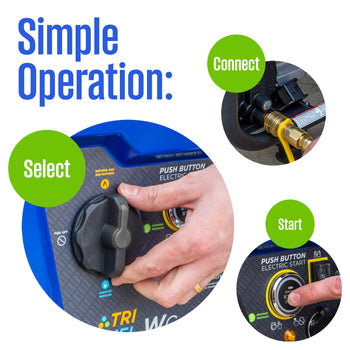

  • Tri-fuel operation easily switches from gas to propane to natural gas without shutting off unit
  • Weighing 203.4 lb. with as low as 74 dBA operating volume

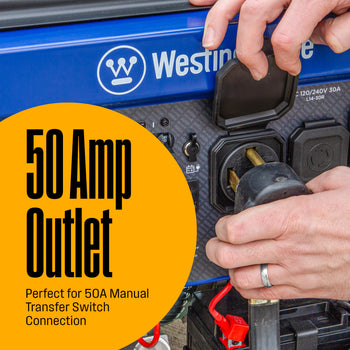

  • (2) GFCI 5-20R household duplex outlets, (1) Transfer Switch Ready L14-30R 120/240-Volt twist-lock, and (1) 120/240V 14-50R with rubber outlet covers
  • VFT display gives you real time updates with the voltage output, frequency, and lifetime hours
  • Featuring a carbon monoxide (CO) sensor with automatic shutdown
  • All Westinghouse portable generators are functionally tested in the factory and may contain minimum residual oil and/or fuel odor

Specifications

Gasoline peak watts 12500
Gasoline running watts 9500
Propane peak watts 11200
Propane running watts 8500
Natural gas peak watts 9500
Natural gas running watts 7500
Gasoline peak amps 52A - 240V, 104A - 120V
Gasoline running amps 39.5A - 240V, 79A - 120V
Propane peak amps 47A - 240V, 93A - 120V
Propane running amps 35A - 240V, 71A - 120V
Natural gas peak amps 39.6A - 240V, 79.2A - 120V
Natural gas running amps 31.3A - 240V, 62.5A - 120V
Ac voltage 120/240V
Ac frequency 60 Hz
Outlets ["2 Duplex 120V 5-20R", "1 120/240V L14-30R", "1 120/240V 14-50R"]
St switch Yes
Total harmonic distortion ≤23%
Gfci outlets Yes
Outlet covers Yes
Transfer switch ready Yes
Rv ready Yes
St switch ready Yes
Display type Digital Readout
Noise level 74 dBA
Fuel gauge Yes
Fuel tank capacity 6.6 gal. (25 L)
Gasoline run time @ 25% 12 hrs.
Gasoline run time @ 50% 8 hrs.
Propane run time @ 50% 7 hrs.
Starter type Electric, Remote, Recoil
Choke type Automatic
Engine displacement 457cc
Engine type OHV 4 Stroke
Oil capacity 37.2 oz. (1.1 qt.)
Engine oil type 10W30
Automatic low oil shutdown Yes
Carbon monoxide (co) sensor Yes
Overload protection Yes
Carb compliant Yes
Grounding system Bonded Neutral

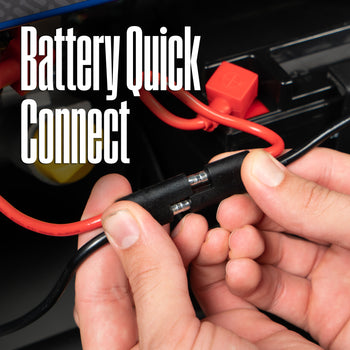

Battery included Yes

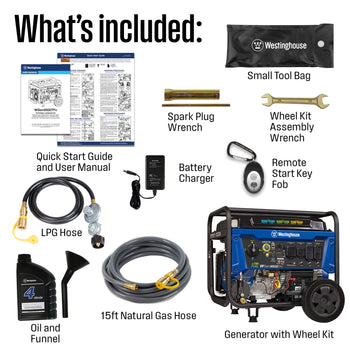

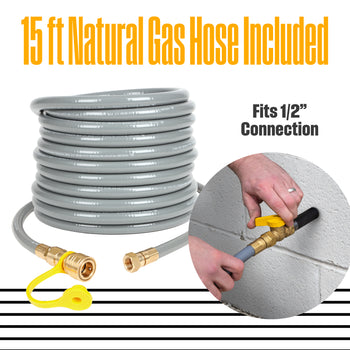

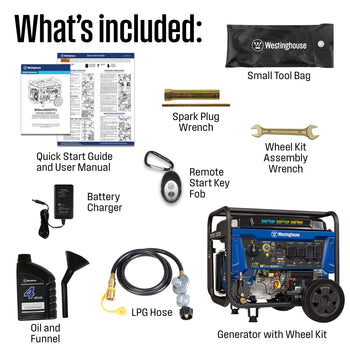

Included accessories ["Oil Bottle", "Oil Funnel", "Spark Plug Wrench", "Remote", "Propane Regulator/Hose", "25' Natural Gas Hose", "Battery Float Charger"]
Warranty (residential) 3 Year Limited
Warranty (commercial) 1 Year Limited
Product dimensions 27.2L x 26.1W x 26.5H in.
Dry unit weight 215 lb. (97.5 kg)
Packaging dimensions 31L x 21.5W x 23H in.
Shipping weight 242 lb. (109.8 kg)
Upc 850032657150
