1/2 HP Submersible Sump Pump

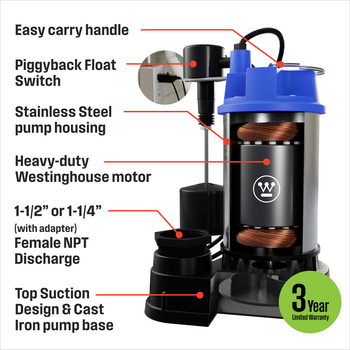

- Heavy-duty, energy efficient, PSC motor with thermal overload protection
- Lubricated ball bearings and shaft seal for long life
- Motor encased in dielectric oil for rapid cooling
- Polycarbonate Impeller
Where to buy

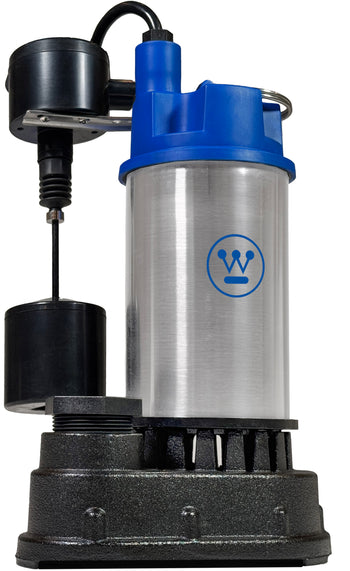

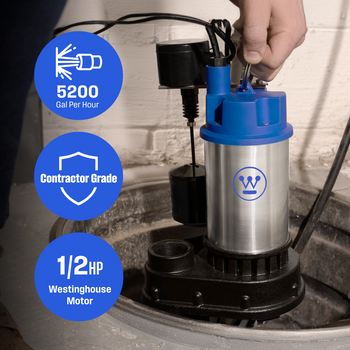

The Westinghouse 1/2 HP Stainless-steel submersible sump pump is a powerful stand-alone primary pump with a high capacity and energy efficient motor. It’s stainless-steel top and cast-iron base allow it to move a high volume of water. Its top suction design reduces the opportunity for airlock, and debris. The Westinghouse 1/2 HP primary pump is best suited for homes with high water volume.
The Westinghouse 1/2 HP Stainless-steel submersible sump pump is a powerful stand-alone primary pump with a high capacity and energy efficient motor. It’s stainless-steel top and cast-iron base allow it to move a high volume of water. Its top suction design reduces the opportunity for airlock, and debris. The Westinghouse 1/2 HP primary pump is best suited for homes with high water volume.
Specifications
| Application | Submersible sump pump for typical residential applications |
| Voltage | 115 |
| Amps | 7.6 |
| Hertz | 60 |
| Phase | Single |
| RPM | 3450 RPM |
| Motor Type | Permanent Split Capacitor (PSC) |
| Insulation | Class B |
| Circuit Requirements | 15 Amp |
| Duty Rating | Continuous, (For Continuous, the water depth must be at least 6" to prevent the motor from overheating) |
| Shaft Seal | Rubber and Stainless Steel |
| Motor Shaft | Stainless Steel |
| Upper Motor Bearing | Ball Bearing |
| Lower Motor Bearing | Ball Bearing |
| Cooling | Oil Cooled |
| Motor Protection | Auto reset thermal overload protector |

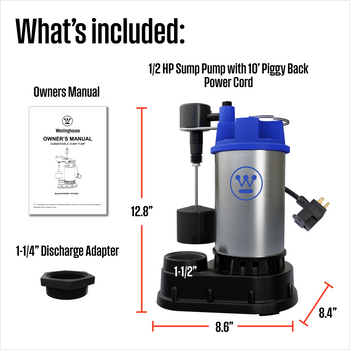

| Discharge Size | 1-1/2" NPT & 1-1/4" NPT |
| Cord Length | 10' |
| Cord Type | SJTW 18AWG/3C, UL List |
| Pump Housing | Stainless Steel |
| Pump Base | Cast Iron |
| Impeller Material | Reinforced thermoplastic |
| Gasket | Rubber |
| Solids Handling | 1/4" Spherical |
| Liquid Temp Range | 32-95F |
| Operation | Automatic/Non-automatic |
| Fasteners | Stainless Steel |
| Maximum Flow Rate | 87 GPM |
| Maximum Head | 30 Ft |
| Maximum Pressure | 13.3 PSI |
| Model No. | SPS05002VP |
| HP | 1/2 |

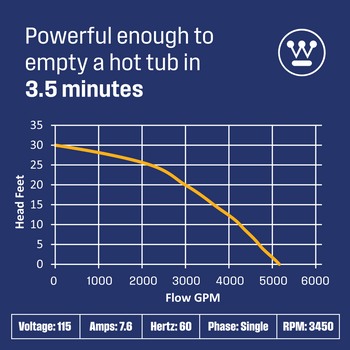

| 0' | 5200 |
| 5' | 4650 |
| 10' | 4200 |
| 15' | 3650 |
| 20' | 3000 |
| 25' | 2200 |
| Type | Vertical |
| Switch on Point | 8.8" |
| Switch off point | 4.5" |
| Material | Reinforced thermoplastic |

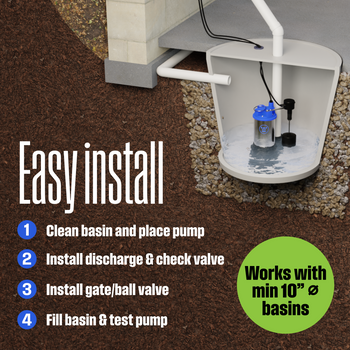

| Sump Basin | Min. 10 in. (254 mm) diameter, 14 in. (356mm) depth |
