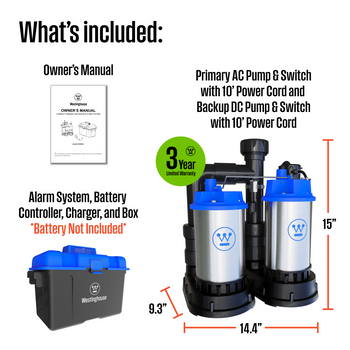

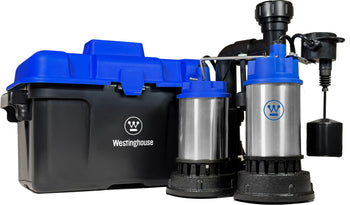

Compact Primary and Backup Pump System

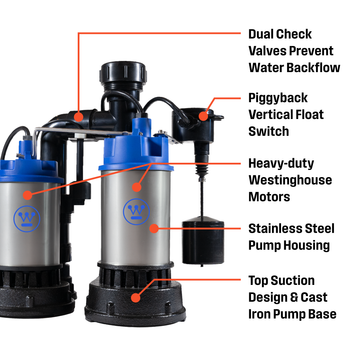

- Stainless Steel pump housing
- Heavy-duty, energy efficient, PSC motor with thermal overload protection
- Lubricated ball bearings and shaft seal for long life
- High flow battery backup DC pump with stainless steel housing and top suction design
Where to buy
The Westinghouse 1/2 HP compact primary and battery backup pump system is designed to protect basements from flooding during power outages or High-water volume instances. Its durable stainless steel and cast-iron design provide you with the comfort to know Westinghouse Compact primary and Backup pump system are continually working to protect your family’s biggest asset
The Westinghouse 1/2 HP compact primary and battery backup pump system is designed to protect basements from flooding during power outages or High-water volume instances. Its durable stainless steel and cast-iron design provide you with the comfort to know Westinghouse Compact primary and Backup pump system are continually working to protect your family’s biggest asset
Specifications
| Application | Submersible sump pump for typical residential applications |
| Voltage | 115 |
| Hertz | 60 |
| Phase | Single |
| RPM | 3450 RPM |
| Motor Type | Permanent Split Capacitor (PSC) |
| Circuit Requirements | 15 Amp |
| Duty Rating | Continuous, (For Continuous, the water depth must be at least 6" to prevent the motor from overheating) |
| Shaft Seal | Oil Seal |
| Motor Shaft | Stainless Steel |
| Motor Bearing | Ball Bearing |
| Cooling | Oil Cooled |
| Motor Protection | Auto reset thermal overload protector |
| Discharge Size | 1-1/2”FNPT (with 1-1/2” Quick Connect Fitting) |
| Cord Length | 10' |
| Cord Type | SJTW 18AWG/3C, UL List |
| Pump Housing | Stainless Steel |
| Pump Base | Cast Iron |
| Impeller Material | Reinforced thermoplastic |
| Gasket | Rubber |
| Solids Handling | 1/4" Spherical |
| Liquid Temp Range | 32-95F |
| Operation | Automatic/Non-automatic |
| Fasteners | Stainless Steel |
| Switch Type | Vertical |
| Switch on Point | 8.8" |
| Switch off Point | 4.5" |
| Horsepower | 120W |
| Voltage (Backup Pump) | 12V |
| Shaft Seal (Backup Pump) | Oil Seal |
| Motor Shaft (Backup Pump) | Stainless Steel |
| Motor Bearing (Backup Pump) | Ball Bearing |
| Circuit Requirements (Backup Pump) | 20 AMP |
| Discharge Size (Backup Pump) | 1-1/2” FNPT (with 1-1/2” Quick Connect Fitting) |
| Cord Length (Backup Pump) | 10' |
| Cord Type (Backup Pump) | SJTW 16AWG/2C |
| Motor Housing (Backup Pump) | Stainless Steel |
| Pump Base (Backup Pump) | Cast Iron |
| Impeller Material (Backup Pump) | Reinforced thermoplastic |
| Solids Handling (Backup Pump) | 1/4" Spherical |
