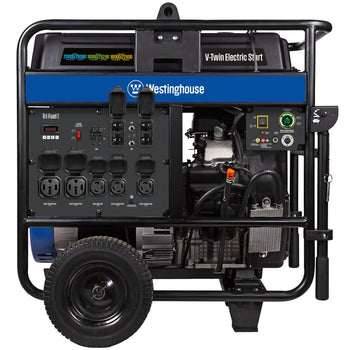

WGen20000TFc - Tri-Fuel with CO Sensor
  • Flexible tri fuel for home backup and heavy duty jobsite use
  • emote and electric start, VFT Data Center, up to 13-hr run time
  • Best-in-class 28,000 peak and 20,000 rated watts (gasoline)
Where to buy

The Westinghouse WGen20000TFc tri fuel portable generator with CO sensor produces up to 28,000 peak watts and 20,000 running watts and runs on gasoline, propane, or natural gas. The heavy-duty 999cc 4-stroke OHV Westinghouse V-Twin engine features a durable cast-iron sleeve and runs for up to 13 hours at 25% load on a 17.2-gallon gas tank, keeping you powered through the day or night with a built-in fuel gauge, automatic low-oil shutdown, and GFCI outlets. Push button electric start makes starting the WGen20000TFc effortless, while the remote start key fob adds convenience from a distance. Its intuitive control panel highlights two 14-50R 50A and two L14-30R 30A outlets. Both are transfer-switch and interlock kit ready and are capable of powering major appliances like air conditioners, refrigerators, sump pumps, as well as lights and entertainment centers simultaneously with a single cord hookup. It also includes a 120V L5-30R 30A outlet. Our exclusive 125A 240V AC lug connector lets a licensed electrician hardwire the generator directly to your home for full power delivery. A VFT data center shows voltage output, frequency, and lifetime hours to keep you updated on real-time information and maintenance alerts. Easily portable with heavy-duty, never-flat wheels, handles, and lift bracket, it’ll have your house, travel trailer, or jobsite powered in seconds. It’s backed by a 3-year limited warranty, lifetime tech support, and our Westinghouse Nationwide Service Network.





  • HUGE PORTABLE POWER: Gasoline: 28,000 peak watts and 20,000 running watts; Propane: 25,200 peak watts and 18,000 running watts; Natural gas: 22,400 peak watts and 16,000 running watts; up to 13 hrs. of run time at 25% load on a 17.2-gal. tank with gauge; perfect backup power source for larger homes

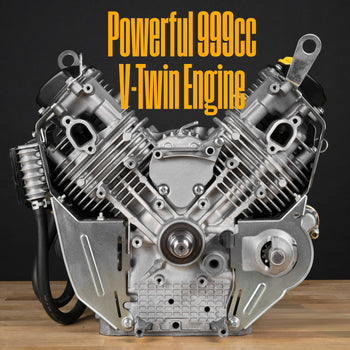

  • TRI FUEL WESTINGHOUSE WORKHORSE: Powered by a heavy-duty 999cc Westinghouse V-Twin OHV engine featuring a cast-iron sleeve; reinforced steel handles with quick-release pins; automatic low-oil shutdown; low idle mode; digital readout displaying lifetime run hours, volts, and frequency
  • PLUG IN, POWER UP: Two 120/240V 14-50R 50A outlets, two 120/240V L14-30R 30A outlets, all transfer switch and interlock kit ready; one 120V L5-30R 30A outlet, four GFCI 120V 5–20R 20A standard duplex outlets; all have rubber covers; includes oil, funnel, and setup guide to get you going right away
  • MAX POWER OPTION: With high output designed for easy whole-home backup, our exclusive 125A 240V AC lug connector lets a licensed electrician hardwire the generator directly to your home for full power delivery without the limits of cords or outlets
  • BIG AND BUILT TO MOVE: Large, never-flat wheels, foldable steel handles and lift bracket for easy maneuvering, so you get best-in-category power wherever and whenever you need it for home backup or jobsite. The power of a stationary unit, but with portability--so it’s the best of both worlds
  • POWER YOU CAN TRUST: All Westinghouse generators are functionally tested in the factory and may contain minimal residual oil and/or fuel odor; EPA-compliant; backed by a 3-year limited service, labor, and parts warranty with our nationwide Westinghouse Customer Service and Support Network

Specifications

Gasoline peak watts 28000
Gasoline running watts 20000
Propane peak watts 25200
Propane running watts 18000
Natural gas peak watts 22400
Natural gas running watts 16000
Gasoline peak amps 116.7A - 240V, 233.3A - 120V
Gasoline running amps 83.3A - 240V, 166.7A - 120V
Propane peak amps 105A - 240V, 210A - 120V
Propane running amps 75A - 240V, 150A - 120V
Natural gas peak amps 93.3A - 240V, 186.7A - 120V
Natural gas running amps 66.7A - 240V, 133.3A - 120V
Ac voltage 120/240V
Ac frequency 60 Hz
Outlets 2 Duplex 120V 5-20R, 1 120/240V L14-30R,1 125A 240V AC Lug Connector, 1 120/240V 14-50R
Total harmonic distortion ≤5%
Gfci outlets Yes
Outlet covers Yes
Transfer switch ready Yes
St switch ready Yes
Display type VFT Display
Noise level 79 dBA
Fuel gauge Yes
Fuel tank capacity 17.2 gal. (65.1 L)
Gasoline run time @ 25% 13 hrs.
Gasoline run time @ 50% 10.5 hrs.
Propane run time, 100lb tank 12.5 hrs.

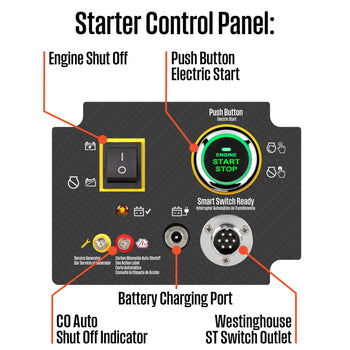

Starter type Electric, Remote
Choke type Automatic
Engine displacement 999cc
Engine type OHV 4 Stroke
Oil capacity 74.4 oz. (2.32 qt.)
Engine oil type 10W30
Automatic low oil shutdown Yes
Carbon monoxide (co) sensor Yes
Overload protection Yes
Carb compliant No
Grounding system Bonded Neutral
Battery included Yes

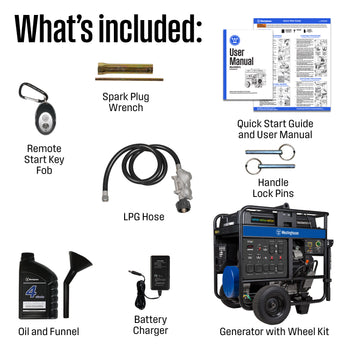

Included accessories Oil Bottle, Oil Funnel, Spark Plug Wrench, Assembly Wrench, Remote, Propane Regulator/Hose, and Battery Float Charger
Warranty (residential) 3 Year Limited
Warranty (commercial) 1 Year Limited
Product dimensions 38L x 35W x 40.4H in.
Dry unit weight 557 lb. (252.7 kg)
Packaging dimensions 38.9L x 27W x 42.5H in.
Shipping weight 640.2 lb. (290.4 kg)
Part number 20027
Upc 850032657785
