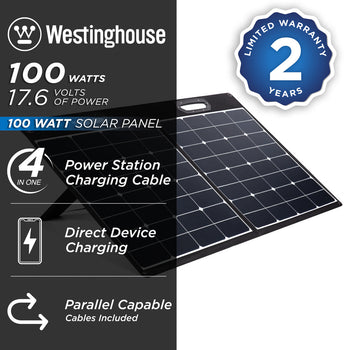

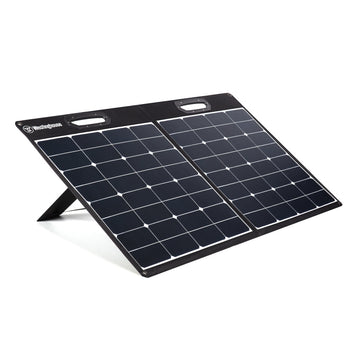

WSolar100p Solar Panel
- Portable solar panel provides up to 100w and 17.6V of on-the-go power
- Directly charge phones, tablets, and more with onboard USB and USB-C outputs
- Compatible with iGen160s, iGen200s, iGen300s, iGen600s, iGen1000s
Where to buy

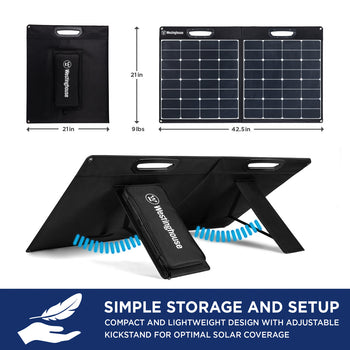

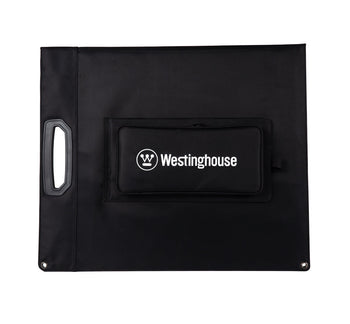

- Features a lightweight, bifold design with an incorporated zippered accessory pouch

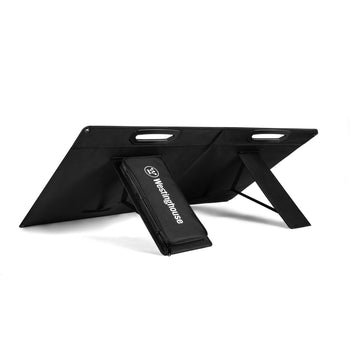

- Two incorporated kickstands allow for easy positioning on any flat surface.

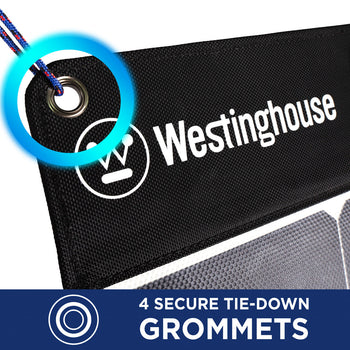

- Reinforced grommets provide additional mounting and tie-down capabilities.
- Powerful monocrystalline solar cells generate up to 100W and 17.6V of power
- The solar cells are 23% efficient and are protected by a highly durable layer of ETFE lamination

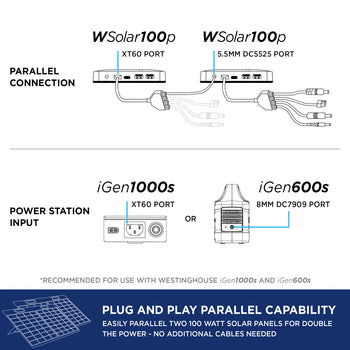

- Pair your WSolar100p with another WSolar100p or WSolar60p to enhance charging times for Westinghouse iGen600s and iGen1000s portable power stations.

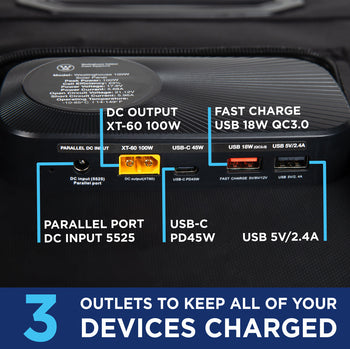

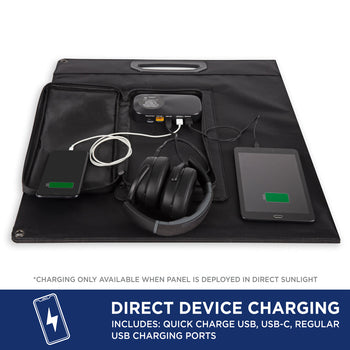

- Charge phones, tablets, computers, and more using an onboard USB outlet, Quick Charge 3.0 USB outlet, and USB-C outlet.
- Simply set up the WSolar100p and plug in your compatible devices for instant solar charging.

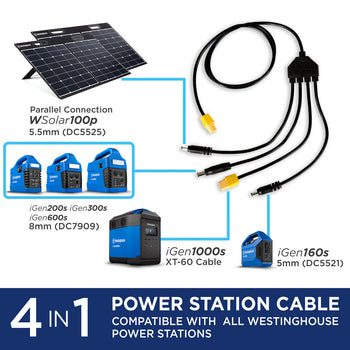

- Includes a convenient four-way power cord that incorporates adapters that allow any Westinghouse portable power station to be turned into a self-sustaining solar generator.
- Features an XT60 plug compatible with the iGen1000s; an 8mm DC7909 plug compatible with the iGen200s, iGen300s, and iGen600s; a 5.5mm DC5521 plug compatible with the iGen160s; and a 5.5mm DC5525 plug for paralleling the WSolar100p with another WSolar100p or WSolar60p.
- Two-Year Limited Warranty
- Features a lightweight, bifold design with an incorporated zippered accessory pouch
- Two incorporated kickstands allow for easy positioning on any flat surface.
- Reinforced grommets provide additional mounting and tie-down capabilities.
- Powerful monocrystalline solar cells generate up to 100W and 17.6V of power
- The solar cells are 23% efficient and are protected by a highly durable layer of ETFE lamination
- Pair your WSolar100p with another WSolar100p or WSolar60p to enhance charging times for Westinghouse iGen600s and iGen1000s portable power stations.
- Charge phones, tablets, computers, and more using an onboard USB outlet, Quick Charge 3.0 USB outlet, and USB-C outlet.
- Simply set up the WSolar100p and plug in your compatible devices for instant solar charging.
- Includes a convenient four-way power cord that incorporates adapters that allow any Westinghouse portable power station to be turned into a self-sustaining solar generator.
- Features an XT60 plug compatible with the iGen1000s; an 8mm DC7909 plug compatible with the iGen200s, iGen300s, and iGen600s; a 5.5mm DC5521 plug compatible with the iGen160s; and a 5.5mm DC5525 plug for paralleling the WSolar100p with another WSolar100p or WSolar60p.
- Two-Year Limited Warranty
Specifications
| Shipping weight | 11 lb. (5 kg) |
| Packaging dimensions | 27L x 23W x 3.25H in. |
| Included accessories | 4 in 1 Charging Cable |
| Parallel capable | Yes |
| Upc | 850011336977 |
| Weight | 9 lb. (4.1 kg) |
| Warranty | 2 Year Limited |
| Short circuit protection | Yes |
| Short circuit current | 5.96A |
| Cell efficiency | 23% |
| Peak voltage | 17.6V |
| Peak current | 5.68A |
| Open circuit voltage | 21.12V |
| Peak power | 100W |
| Surge protection | Yes |
| Operating temperature | 14 to 149° F |
| Charging cable outputs | 5.5mm DC5525 8mm DC7909 XT-60 5mm DC5521 |
| Charging cable length | 4 ft. |
| Over power protection | Yes |
| Cell type | Monocrystalline |
| Usb-a output | 5V/2.4A |
| Usb-c output | 5V/3A, 9V/3A, 12V/1.5A |
| Igen300s - charge time | 5.5 hrs. |
| Igen200s - charge time | 4 hrs. |
| Igen160s - charge time | 3 hrs. |
| Dimensions (unfolded) | 42.5L x 21W x 1.75H in. |
| Dimensions (folded) | 25L x 21W x 2H in. |
| Igen600s - charge time | 11 hrs 5.5 hrs. x2 WSolar100p |
| Igen1000s - charge time | 18.5 hrs 9 hrs. x2 WSolar100p |
